Why is the Printer Supporting Plate a key component to improve print quality?

1. Importance of Print Quality
In modern society, print quality is the key to the success of various printer products. Whether it is a commercial office environment or home use, high-quality printing is not only about aesthetics, but also about work efficiency. With the advancement of the digital age, printing technology has gradually developed towards refinement, and many fields require more accurate and efficient printing effects. For example, in industries such as advertising, architectural design, and scientific research reports, print quality directly affects the presentation of the final results, and may even affect the company's image and customer satisfaction.
However, in order to ensure print quality, many people ignore the components inside the printer, especially the printer's support system. In particular, the Printer Supporting Plate plays a vital role in the entire printing process, directly affecting the accuracy of the print head, the stability of the paper, and the distribution of ink.

2. Basic knowledge of Printer Supporting Plate
2.1 Definition and function of Printer Supporting Plate

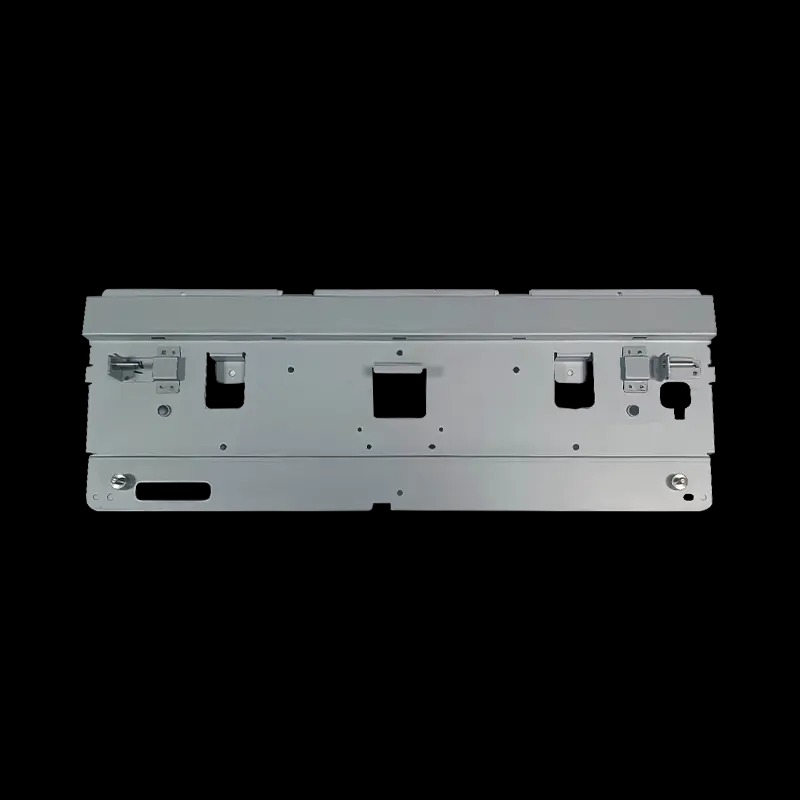

Printer Supporting Plate, or print support plate, is a key component in the printer. It is usually located inside the printer, directly supporting the paper and providing a smooth feeding path for the paper. It is located below the print head, ensuring that the paper remains horizontal during printing and preventing the paper from tilting or misaligning when the print head moves.
The function of the support plate is far more than that. It not only maintains the stability of the paper, but also needs to work with other parts to ensure that the print head can move accurately along the predetermined route. A poorly designed support plate may cause misalignment of printing, blurred handwriting, and even equipment failure.
2.2 Working principle of Printer Supporting Plate
The working principle of Printer Supporting Plate is simply to support the paper through its sturdy and stable structure to ensure the accurate positioning of the paper during printing. The support plate is usually connected to the rest of the printer through a mechanical device to guide the paper during printing. Its surface is usually made of smooth and wear-resistant material to reduce the impact of friction on the paper and ensure that the paper will not cause printing errors due to excessive or insufficient friction during printing.
Through the precise design of the support plate, the distance between the paper and the print head is precisely controlled, avoiding errors caused by the skew of the paper. At the same time, the support plate can also ensure that the paper is not bent or folded by mechanical equipment, avoiding physical deformation of the paper, making the printing process smoother.
2.3 Material and design of support plate
The material of the support plate is crucial to its performance during the printing process. Common support plate materials include metal, plastic, composite materials, etc. Metal support plates are usually used in high-end or industrial-grade printers because of their high strength and durability. Plastic support plates are lighter and less expensive, suitable for home printers. Composite materials provide a better balance between strength and weight and are suitable for various types of printers.
In terms of design, the support plate usually needs to be adjusted according to the specific type of printer and printing needs. For example, laser printers and inkjet printers have different requirements for support plates. Laser printers require support plates with stronger heat resistance because higher temperatures are generated during laser printing; while inkjet printers pay more attention to the accuracy and wear resistance of the support plate, because the uniformity of ink distribution during inkjet printing is crucial to print quality.

3. How Printer Supporting Plate Affects Print Quality
3.1 Providing Stable Support: Reducing Paper Skew and Misalignment
During the printing process, the stability of the paper is critical. If the support plate is poorly designed or improperly installed, the paper may tilt or misalign, resulting in printing deviation, image blur and other problems. The Printer Supporting Plate avoids these common printing problems by providing stable support to ensure that the paper is accurately aligned under the print head.
In addition, the flatness of the support plate directly affects the distance between the print head and the paper. If the support plate is deformed, it may cause the print head to be too high or too low, which will affect the ink spraying accuracy, causing color difference and blur.
3.2 Optimizing the movement of the print head: ensuring uniform printing effect
The support plate not only provides paper support, it also directly affects the movement of the print head. By precisely controlling the position of the paper, the support plate can ensure that the print head always maintains a stable movement trajectory during the printing process. If the support plate is not designed properly, the print head may shake due to the tilt or offset of the paper, resulting in uneven ink distribution and affecting the printing effect.
3.3 Affecting the Accuracy and Speed ​​of the Printer
The accuracy of the support plate directly affects the overall performance of the printer. A precisely designed support plate can significantly improve the printing accuracy of the printer, reduce errors, and thus improve the printing quality. In addition, the design of the support plate is closely related to the speed of the printer. By optimizing the support plate, the printer can increase the printing speed while maintaining high accuracy.
3.4 Reduce mechanical wear and failure risk
The Printer Supporting Plate not only directly affects the printing quality, but also greatly reduces the mechanical wear of the printer. Since the support plate is responsible for ensuring the precise contact between the paper and other components, its stability can effectively reduce the workload of other components and extend the life of the printer.
For printers that are used frequently, the design and material of the support plate are crucial. If there are design defects in the support plate, it may cause unstable paper feeding, increase mechanical wear of the printer, and even cause failure.

4. Synergy between the Printer Supporting Plate and other parts of the printer
4.1 Relationship between the paper feeding system and the support plate
The paper feeding system is a critical component in the printer. It is responsible for feeding the paper into the printing area on demand. The support plate provides essential stable support. The two work together to ensure that the paper feeding system can smoothly feed the paper into the printer and maintain its stable position during the printing process. The precise design of the support plate can reduce the friction in the paper feeding system, thereby improving the efficiency and accuracy of paper transmission.
4.2 Matching of the print head and the support plate
The accuracy and stability of the print head are one of the core factors affecting the printing quality. The Printer Supporting Plate helps the print head maintain a smooth movement trajectory by ensuring the accurate alignment of the paper under the print head, thereby avoiding uneven ink spraying caused by skewed or unstable paper.
This precise matching not only helps to improve the clarity of images and text, but also ensures the accurate restoration of details, which is especially important in high-resolution printing.
4.3 The role of the support plate in the overall design of the printer
The design of the printer needs to consider the coordination between various components, including the support plate, print head, paper feeding system, etc. The support plate plays a connecting role in it, and through precise matching with other components, it ensures the smooth progress of the entire printing process. A well-designed support plate can effectively reduce the friction and pressure between components, reduce the occurrence of machine failures, and improve the overall printing quality.

5. How to choose a suitable Printer Supporting Plate?
5.1 Consider the printer type and requirements
To choose a suitable Printer Supporting Plate, you first need to decide based on the type of printer and specific requirements. Different types of printers have different requirements for support plates. For example, laser printers and inkjet printers have different requirements for stability, heat resistance, and wear resistance during use.
Laser printers:
Laser printers use electrostatic imaging technology, which will generate high temperatures during the printing process. Therefore, the support plate needs to have strong high temperature resistance. Generally, the support plate of high-end laser printers is made of metal materials or composite materials with high temperature tolerance to ensure stability and print quality during the printing process.
Inkjet printers:
Inkjet printers require support plates with strong flatness and stability, because inkjet printing requires extremely uniform distribution of ink. If the support plate is deformed or uneven, it will cause uneven ink dripping, thus affecting the printing quality. Therefore, the support plate of inkjet printers is generally made of plastic or composite materials, which have good friction resistance and strength.
3D printers:
With the development of 3D printing technology, the role of support plates in 3D printers has become more important. 3D printing requires the support plate to provide extremely high flatness, because any slight error may affect the accuracy of printing. In this case, the support plate usually needs to have high wear resistance and temperature resistance to adapt to the heat and friction that may be generated during 3D printing.
5.2 Support plate accuracy and manufacturing process
The accuracy of the support plate is the basis for ensuring high-quality printing of the printer. The fineness of the manufacturing process directly determines the performance and reliability of the support plate. High-precision support plates can ensure that the paper can move stably during high-speed printing of the printer and avoid misalignment or tilting.
The manufacturing process of modern support plates usually adopts precision processing technology, such as CNC machine tool processing or laser cutting. These advanced technologies can ensure the high accuracy of the size and shape of the support plate and further improve the printing quality.

6. Future development trend of Printer Supporting Plate
6.1 Intelligence and automation
With the continuous development of artificial intelligence and automation technology, future printers will be more intelligent. As one of the key components, Printer Supporting Plate will also take an important step on the road to intelligence. By combining sensors and intelligent control systems, the future support plate may automatically adjust the support force and position according to the working status of the printer and the condition of the paper, further improving the printing accuracy and quality.
6.2 Application of high-performance materials
In the future, with the continuous development of new materials, Printer Supporting Plate may adopt more high-performance materials. For example, carbon fiber composite materials, ceramic materials, etc., can provide better strength, durability and stability while reducing weight. The application of these new materials will further improve the performance of the printer, reduce the mechanical failure rate, and extend the service life of the printer.
6.3 More environmentally friendly design
With the improvement of environmental awareness, the future Printer Supporting Plate will pay more attention to environmental protection in design. For example, using recyclable materials, reducing energy consumption in the production process, etc. Environmentally friendly design can not only reduce production costs, but also improve the market competitiveness of printers.

7. Conclusion
Printer Supporting Plate is one of the key components to improve printing quality, and its role cannot be underestimated. By providing stable support, optimizing print head movement, and reducing friction and mechanical wear, the support plate plays a vital role in the stability and printing quality of the printer. Whether it is commercial printing, scientific research, or industrial application, Printer Supporting Plate has a profound impact on printing results.
